Weather Forecast Graphic Templates

The following graphic templates are provided with the installation of the Weather Forecast extension common library. For details on the different properties, see Weather Forecast Object Models.

TEM_WF_Day_None_001_150

In Engineering mode, the day graphic template displays how weather forecasts are graphically represented in a day for a location.

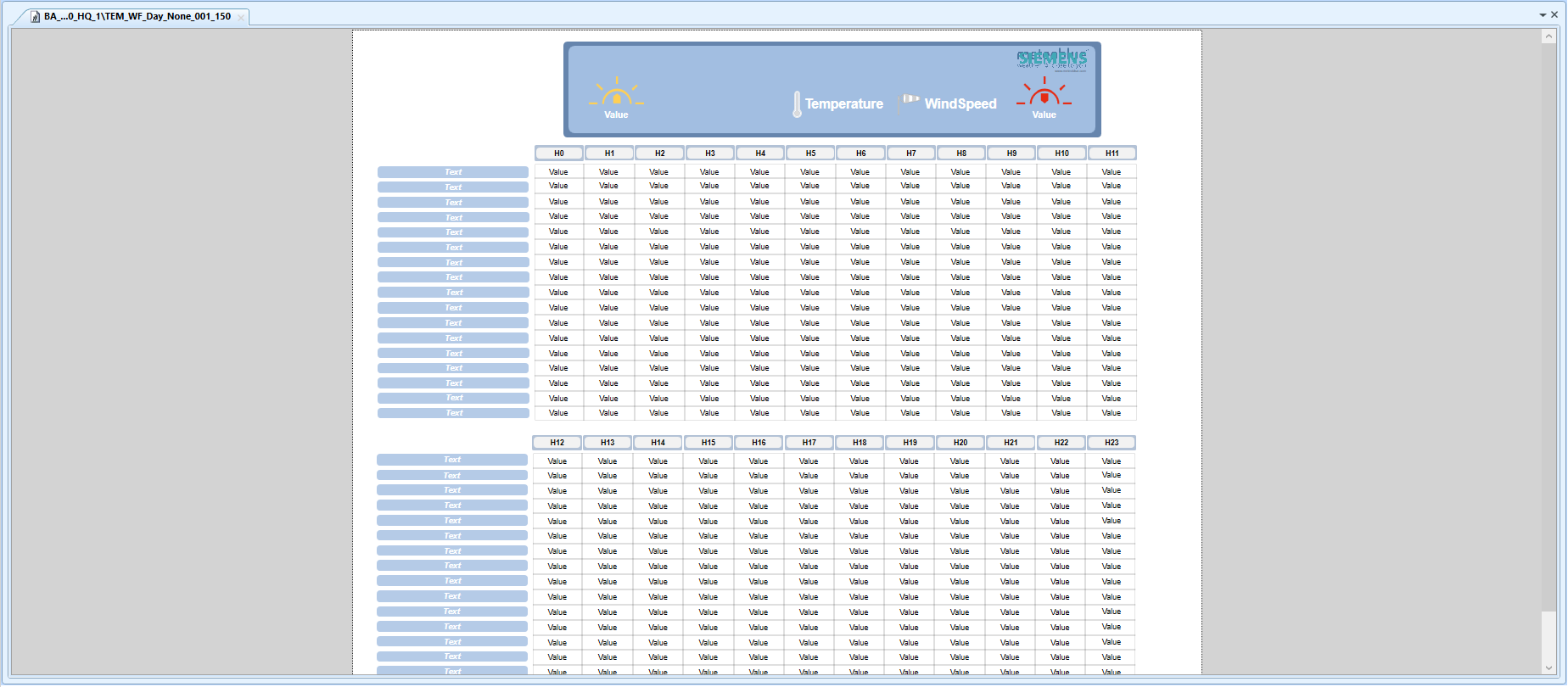

Day Weather Forecasts Engineering Graphic Template

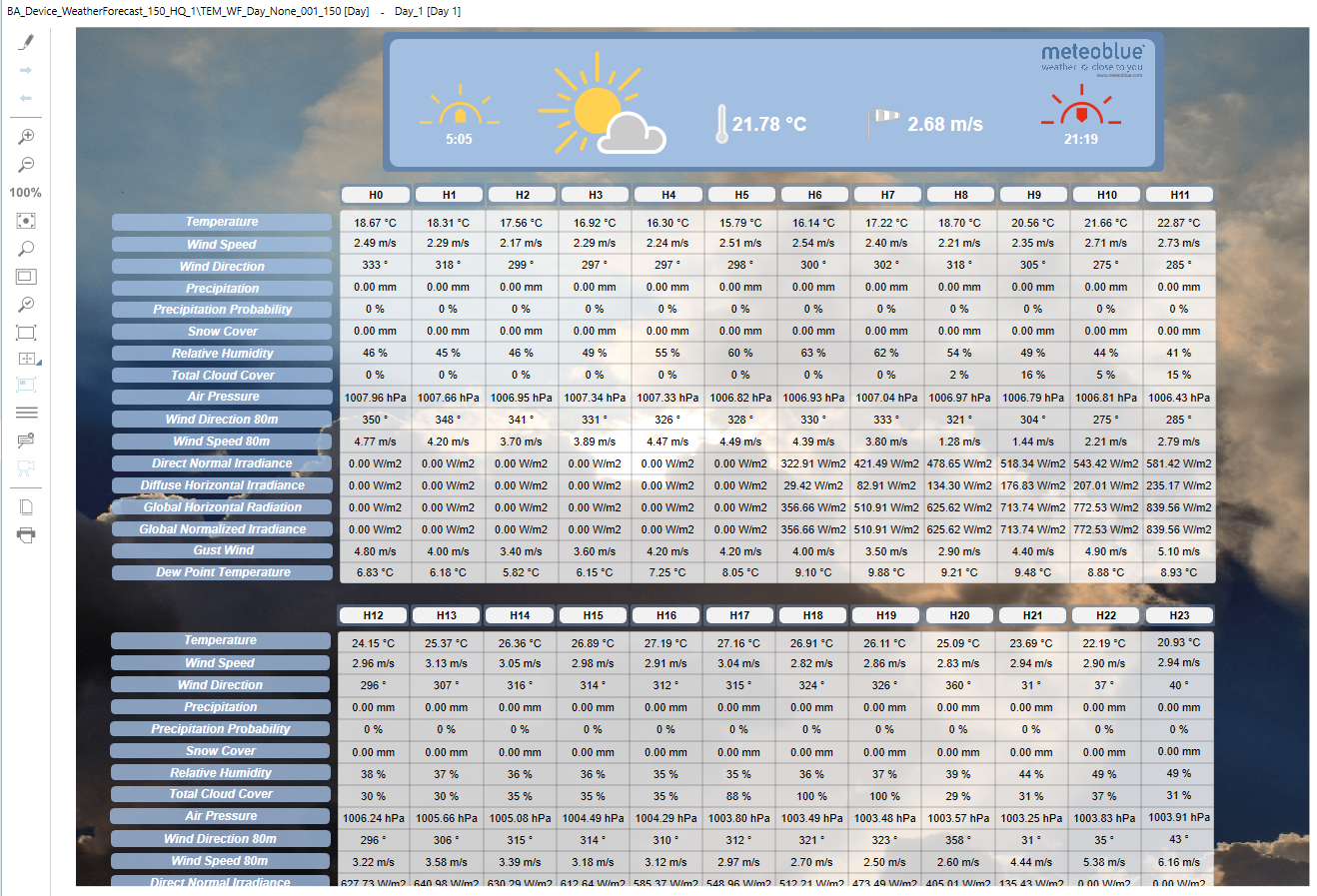

In Operating mode, the day weather forecasts are graphically displayed as follows.

TEM_WF_Location_001_150

In Engineering mode, the location graphic template displays how weather forecasts are graphically represented for a location.

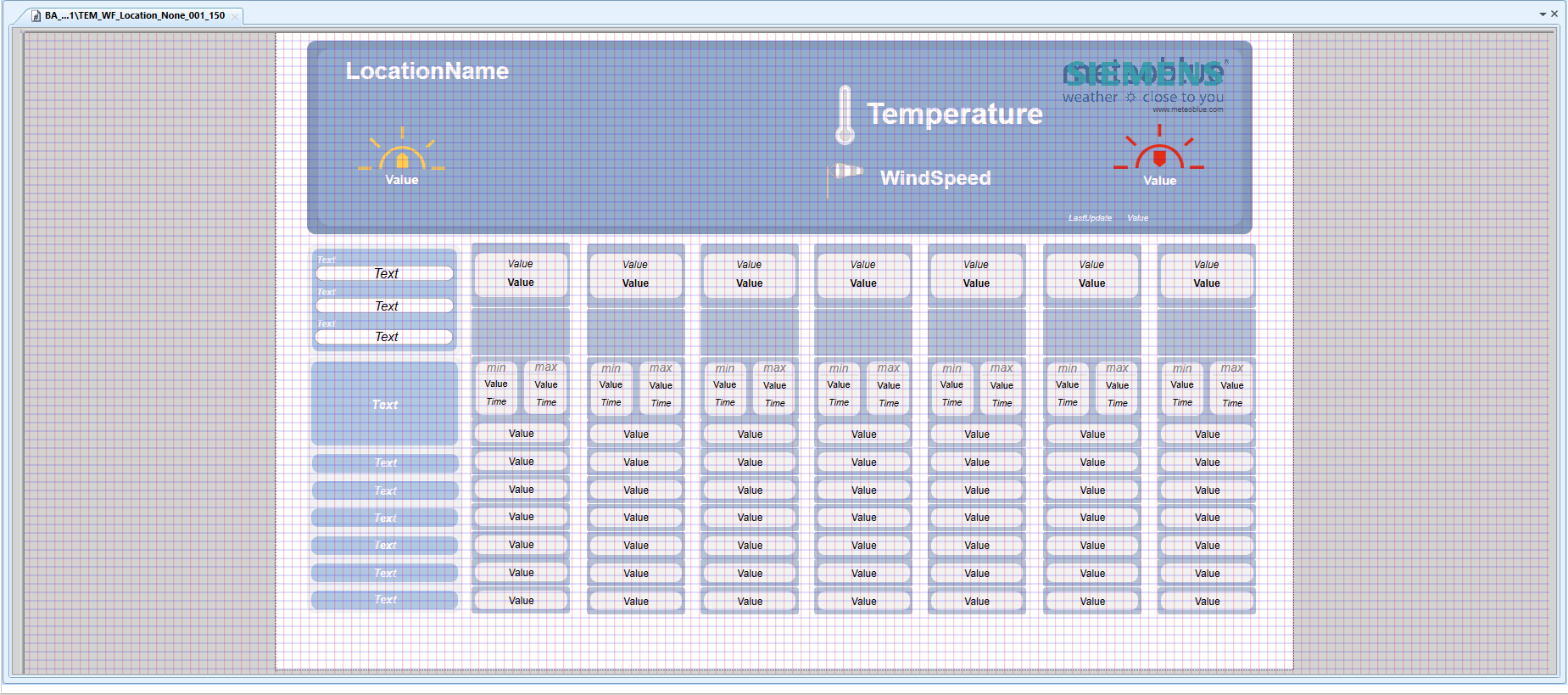

Location Weather Forecasts Engineering Graphic Template

In Operating mode, the location weather forecasts are graphically displayed as follows.

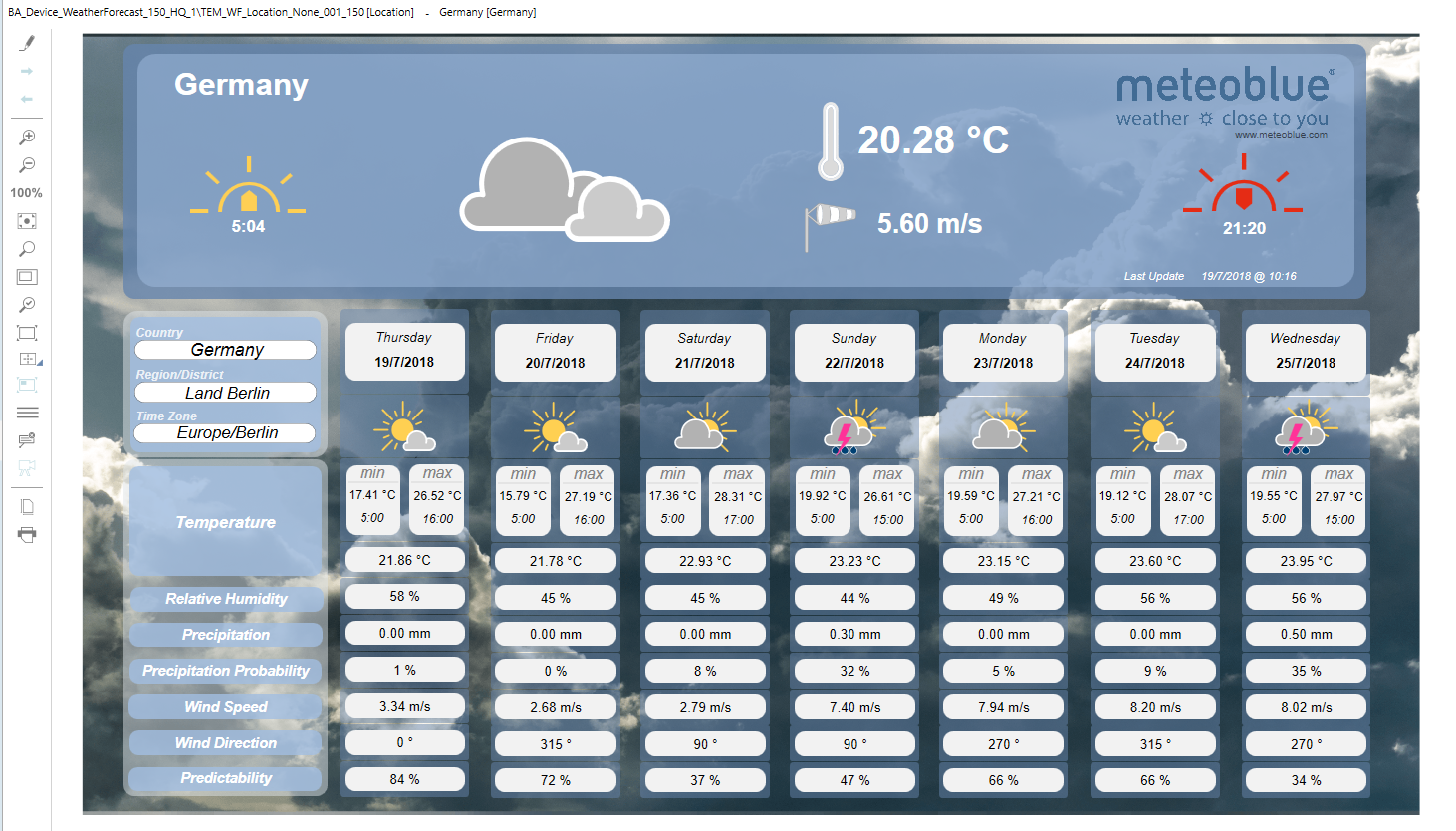

Location Weather Forecasts Operating Graphic

Picto Icons

Iday
Picto Code	Description	Image
1	Sunny, cloudless sky	3
2	Sunny and few clouds	8
3	Partly cloudy	8
4	Overcast	1
5	Fog	10
6	Overcast with rain	6
7	Mixed with showers	5
8	Showers, thunderstorms likely	5
9	Overcast with snow	11
10	Mixed with snow showers	11
11	Mostly cloudy with a mixture of snow and rain	11
12	Overcast with light rain	6
13	Overcast with light snow	11
14	Mostly cloudy with rain	5
15	Mostly cloudy with snow	4
16	Mostly cloudy with rain	5
17	Mostly cloudy with snow	4

Inight
Picto Code	Description	Image
1	Cloudless sky	9
2	Clear with few clouds	2
3	Partly cloudy	2
4	Overcast	2
5	Fog	12
6	Overcast with rain	7
7	Mixed with showers	7
8	Showers, thunderstorms likely	7
9	Overcast with snow	13
10	Mixed with snow showers	13
11	Mostly cloudy with a mixture of snow and rain	13
12	Overcast with light rain	7
13	Overcast with light snow	13
14	Mostly cloudy with rain	7
15	Mostly cloudy with snow	13
16	Mostly cloudy with rain	7
17	Mostly cloudy with snow	13
