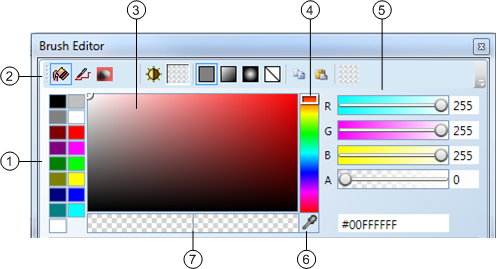

Brush Editor View

Brush Editor Top

Description

1

Base Color Palette

Display the sixteen base colors for graphics you can choose from.

 2

Brush Bar

Select from the available brush types and tools available for working with the selected elements, canvas, and work area. Also allows the user to select linear and radial gradient fill options, copy and paste features, and revert to the last brush.

Fill Brush

Set the color apply to the Fill (interior) property of the selected elements.

Stroke Brush

Set the color that is applied to the Stroke property or the font color of the selected elements.

Background Brush

Set the color that is applied to the Background property of the selected element on the canvas.

Miscellaneous Color Brush

Indicate a brush, other than the ones available from the Brush bar, is currently active on the element. For example, when setting the shadow color of a property, etc.

NOTE: The Miscellaneous Color Brush icon only displays on the Brush Editor when it is active, otherwise, it does not display on the Setting bar.

Toggle Blinking Brush

Split the Main Brush into two panes. When the Toggle Blinking brush is selected, the Main Brush is split in two, and two colors can be applied to the brush; one in each pane of the now split Main Brush. In Test or Runtime mode the element will toggle between the two state colors applied.

NOTE: Do not confuse this with the Blinking property check box of the Layout group in the Properties view, which, when enabled allows the associated element to blink (toggle between visible and non-visible) on the graphic canvas.

Main Brush

The main brush reflects the current colors and brush settings applied to the selected elements on the canvas.

Main Brush and Blink Brush

When the Toggle Blinking Brush is selected, the Main Brush icon splits into two panes and displays the main brush color and then the blink brush color.

Solid Color Brush

Apply a single solid color without any blending, etc.

Linear Gradient Brush

Blend colors along a straight path.

Radial Gradient: Brush

Blend colors while radiating or branching out in all directions from a common, specified center.

When you apply a radial gradient to an object, if the focal point is configured outside its radial ellipse, you may have subtle differences between what is displayed on the install client (.CCG/.CCS) and what is displayed in the Flex Client application (.SVG).

NOTE: When you apply a linear or radial gradient to a text element, if the text is larger or smaller than it’s bounding rectangle, you may have subtle differences between what is displayed on the install client (.CCG/.CCS) and what is displayed in the Flex Client application (.SVG). To reduce these differences, it's recommended that you check the Absolute checkbox. See row 15 Absolute Option in the table below for more information.

No Brush

Remove any brushes applied to the element when selected.

NOTE: Shapes without a fill brush are not selectable and do not show tooltips within the shape.

Copy Brush

Copy any brush applications from the selected element to the clipboard.

Paste Brush

Paste any brush applications from an element currently saved to the Copy Brush clipboard.

Revert Back

Re-apply the previous brush applications to the Main brush and the selected element.

3

Hue, Saturation, and Value (HSV) Palette

Move the mouse over a spectrum of color, ranging in saturation. When the mouse is moved, the current hue is also reflected on the RGBA sliders, the Main brush, and the selected element on the canvas. The hexadecimal value is also updated.

4

Hue Slider

Move the slider up and down the hue color spectrum to select a color. When the Hue slider is moved, the current hue is also reflected on the RGBA sliders, The HSV palette, the Main brush, and the selected element on the canvas. The hexadecimal value is also updated.

5

RGBA Sliders

Adjust the opacity of your graphical elements and select custom colors from the RGBA Hue slider controls, or by entering a hexadecimal color code, or by entering the name of a color from the HTML Literal Word Colors Table. The sliders have dynamically changing backgrounds showing the current color selection as they change.

6

Color Eyedropper

Move your cursor over a color and brush content and copy it to the selected element. As the eyedropper is moved around, the current color or brush hovered over is previewed on the current element and the Brush Editor view color tools are updated as well.

7

Current Color and Initial Color Initial Color

Displays the current color on the left, and the initial (previous) color selected.

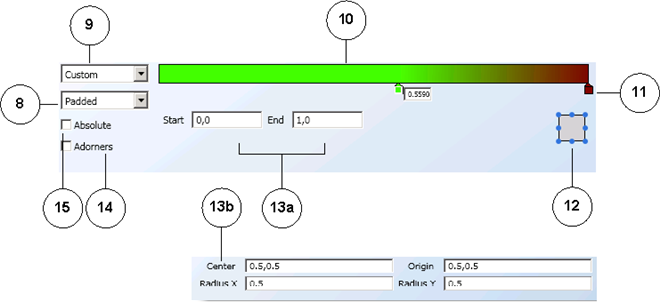

Brush Editor View – Gradient Options

 8

Spread Mode Options

Select Padded, Reflect, or Repeat for a variety of visual gradient effects.

 9

Gradient Options

Select from common predefined gradient definitions or you can select the Custom option, and use the gradient stops.

10

Gradient Slide Bar

Set the definition for linear and radial gradients using the gradient stops.

11

Gradient Stops

Set the colors in the gradient by clicking on the gradient slide bar and selecting a color from the palette for the stop.

12

Angle Control Selector

Select the angle of light for a linear and radial gradient.

13a

Linear Gradient Control

Enter explicit values to define the linear gradient Start and End positions.

13b

Radial Gradient Control

Enter explicit values to define the radial gradient Center, Origin, Radius X, and Radius Y positions.

NOTE: To prevent any unexpected differences in the Flex client, it is recommended you use the same value for radius X and Y when configuring your graphics. For more information, see Brush View and Brushes Group.

14

Adorners Option

Apply and control visual effects using gradient spread and vector position.

 15

Absolute Option

Define a coordinate system that is not relative to a bounding box. The values you enter are interpreted directly in the local space.

NOTE: Select this option when you apply gradients to a Text element that will display in the Flex client.
