Main Expander

In the Main expander, you can:

Edit the description of object names
Define an alias name
Define a service text
Assign a new Function
Temporarily take the object out of scan
Edit object assignment to electrical and mechanical installation
Define individual data points for critical environment
Define override protection
Define tags

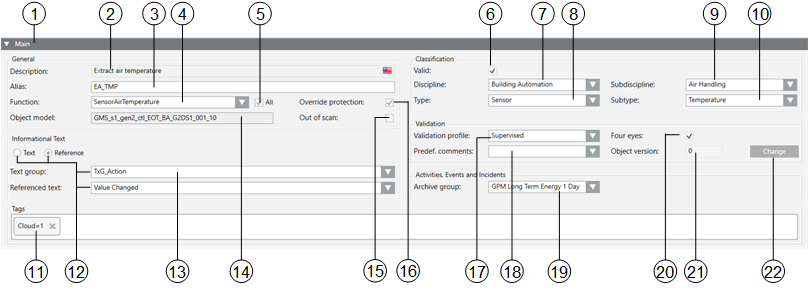

	Name	Description
1		Symbol indicates a bulk engineering selection of more than one data point.
2	Description	Describes the data point name. You can edit and translate the data point by clicking the country flag.
3	Alias	An alternative description for the data point name, available for user-defined information. Do not use the following characters: * , ? , @.
4	Function	Displays the associated Function.
5	All	Selected: Displays all Functions in the system. Cleared: Displays only the Function assigned to the Object Model in the Function Mapper.
6	Valid	Displays, based on the color code, the source used for inheriting the information.
7	Discipline	Category of the discipline (for example, Life Safety).
8	Type	Category of the corresponding type (for example, Zone).
9	Subdiscipline	Description of an object (for example, Detection for Life Safety discipline).
10	Subtype	Description of object (for example, Zone 1 for type Zone).
11	Tags	Use tags to identify objects in other application. For example, `Cloud=1`.
12	Informational Text	Select an option to create an instruction or a technical reference text: To create an instruction, select Text, and then enter the instruction. For example, `Call service technician at 123456.` To create a technical reference text, select Reference and then select a text group from the Text group drop-down list and a reference text from the Referenced text drop-down list.
13	Object model	Displays the associated Object Model.
14	Out of scan	Select this check box if you want the data point to be temporarily taken out of scan.
15	Override protection	The Override protection checkbox is automatically selected when making manual changes in the Main expander. Selected: Manual changes are not overwritten during data import. Cleared: Any changes are lost during the next data import if the checkbox is manually cleared.
16	Validation profile	Individual or multiple plants, parts of plants, or objects that monitor a critical environment (for example, Pharma) can be selected. Disabled = No system monitoring. Enabled = Requires a comment. Supervised = Requires user authentication (password), and a comment. Monitored = Requires supervisor authentication (name and password).
17	Predef. comments	Predefined comments. Allows you to select a table with predefined text options that can be entered into the Comment field when validation is required. To create one or more validation-specific text groups for predefined comments, go to the following location: Project > System Settings > Libraries > L4-Project > Common > Common > Texts. Consider naming the text groups ValidationPredefinedComments[additional identifier] or something similar. In this example, if you use Primary as the additional identifier, the text group would display as TxG_ValidationPredefinedCommentsPrimary in the Predef. comments drop-down. For more information on creating standard texts, see Adding a text group.
18	Archive group	Lets you select the HDB archive group that values of this object are saved to.
19	Four eyes	If selected, any user validation requires confirmation by a supervisor.
20	Object version	Displays the number of saved user changes made to this object. The counter is increased by +1 for each Save to the counter if an option is set on the Validation profile. In Edit mode, any number can be entered. The counter can be reset to 0 when handing the project to the customer.
21	Change	Changes to the Edit mode for the Object version.

Valid

Inheritance Rules for Object Model, Function, and Object
Icon	Color	Description
	White	No value is inherited.
	Grey	The project instance value is inherited.
	Green	The Function inherits the value.
	Blue	The Object Model inherits the value.
	Question mark with a yellow background.	The value is undefined until the instance is saved.

While you change inheritance properties, you cannot disable an inheritance. As a result, the state changes from to or when editing. This display for the inheritance function is used for the Main, Properties, Details, and Alarm Configuration expander.

Alias (User Designation)

As an alternative to describing the data point name, you can enter a freely definable text as user designation. In System Manager, you can search for aliases (filter search), and the alias displays in the Textual Viewer and in the tooltips. It can display in Event List, notification messages, Journaling templates, Trend legends and so on.

The information is taken over in the Alias names during a SiB-X data import if the user designation was previously created using the engineering tool.

Any changes to the Alias names in Desigo CC are lost when reimporting SiB-X data.

Discipline, Subdiscipline, Type, Subtype

Use predefined information to define where the corresponding Function is used.

Entries for Discipline, Subdiscipline, Type and Subtype have a direct influence on alarm forwarding, Scopes, and search criteria in Desigo CC.

Out of Scan

You can temporarily take a data point out of service using the Out of scan function. This makes sense when you need to service a sensor or sensor group. No alarm is triggered as long as the function is selected.

Override Protection

The system protects manual customizations of the main object attributes from being overridden by subsequent bulk updates such as import and discovery procedures. In fact, after any manual modification in the Main expander of the Object Configurator tab, the Override Protection check box gets automatically selected. At that point, if you want the import and discovery procedures to update the main attributes of that object again, you need to deselect the Override Protection check box. The list of main object attributes includes: Description, Function, Alias, Discipline, Subdiscipline, Type, and Subtype.

Validation Profile

Certain critical environments (for example, pharmaceutical installations) require a high level of security. Any changes made by the user must be logged for tracking purposes.

Actions Logged in History Database (Activity Log)
Actions to be Logged	Disabled	Critical	Supervised
Log commands to status properties	Yes	Yes	Yes
Log commands to configuration properties	Yes	Yes	Yes
Log configuration changes	No	Yes	Yes
Comments for commands to status properties	No	Required	Required
Comments for commands to configuration properties	No	Required	Required
Comments for configuration changes	No	Required	Required
Reauthentication for commands to status properties	No	No	Yes
Reauthentication for commands to configuration properties	No	No	Yes
Reauthentication for configuration changes	No	No	Yes
Increment version numbering on configuration changes	No	Yes	Yes
