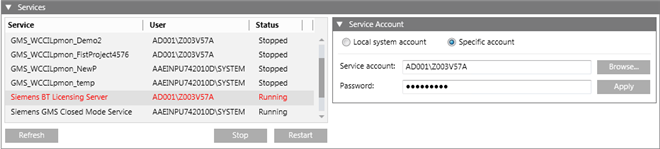

Services Expander

The Services expander displays a list of Desigo CC and extension module supported services, along with their current users and the status.

A service is visible in the Services expander only when it is present in the Windows services or in the WinServicesList.xml file located at the path …\GMSMainProject\bin.

The Services list does not contain other third-party software services installed by Desigo CC .

You can start or stop a service, and refresh the list to get the latest service status; Running, Stopped, or Paused.

Services Expander

Item

Description

Service

Displays a list of services including the project's Pmon services. It also displays Desigo CC and extension module supported services that are available in the WinServicesList.xml file.

User

Displays the current logged-in user of a service.

Status

Displays the current status (Running, Stopped, Paused)
You can stop the running service and start it. You can start the stopped service, but you cannot re-start it. Also, you can only stop the paused service and start it.

Refresh

Provides the updated status of the service.
To get the current status of a service from MS Windows Services, you must re-fresh in the SMC using this button.
This button is always enabled.

Start/Stop

This toggle button allows you to start and stop the service.

Restart

This button gets enabled only when you select a service having the status Running. It allows you to restart the running (started) service.

Tips

  • It is not recommended to start, stop, or change a user for the project's Pmon service, GMS_WCCILpmon_[Project Name], using the Services expander in the SMC or from the Windows Services applet.
  • From the Services expander, you can change the Service account user of a listed service except the project's Pmon service, GMS_WCCILpmon_[Project Name]. When needed, the Pmon service GMS_WCCILpmon_[Project Name], Service account user can be changed using System Accounts of the Settings expander.
  • The SMC does not necessarily reflect the changes done in a project's Pmon service using Windows. For example, if the Pmon service user’s password is changed externally from the Windows Services applet (not using SMC), then to synch the changed password with password of the Pmon user in SMC, you must do the following steps. Otherwise you cannot start the project.
    1. From SMC tree, select System and open the Services expander.
    2. Select the GMS_WCCILpmon_[Project Name].
    3. Change the password of the user to the correct one.
    4. Click Apply.
    5. Save.

Service Account Expander

The Service Account expander allows you to configure the Service account for the selected service from the list of services in the Services expander.

This expander is enabled only when you select a service from the list of services in the Services expander.

Service Account Expander

Item

Description

Local system account

Default selection. Displays the local system account user of the selected service from the Services expander.

Specific account

Allows you to set a specific account from current station or other domains.

Browse

Allows you to browse for the user in the current station or another domain.

Password

Allows you to enter the password. The System user does not require a password.

Apply

Sets the selected user as Service account user for the selected service.
