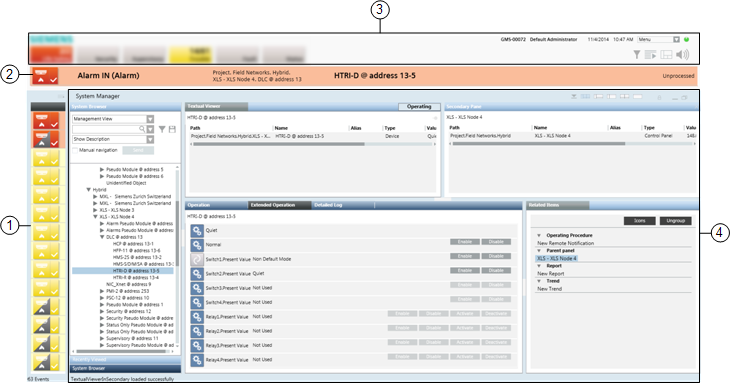

Main Screen Layout in Danger Management Profiles

1

Event bar

Provides a compact view of the events in the system, where each event displays as a button along the left-hand side.

2

Event Detail bar

Present in some configurations only. Highlights the most critical event in the system.

3

Summary bar

The main point of entry to all the functions of the software. It may be collapsed in which case you must click the down icon on the top right to display it.

4

Work area

Large central portion of the screen below the Summary bar. The window displayed here will vary depending on the system function that is being used. It will typically contain the Event List or System Manager window. It can also display the Investigative or Assisted Treatment windows, the system help, and external documents or applications.
