Management View

The Management View is predefined and includes all the objects pertaining to its overall management such as: representation of the field site, the computer networking, and other site project settings. Basically, it provides a depiction centered on the site installation and allows navigation through the hierarchical structure of the project tree. Authorized technicians typically use this view to set up the site project.

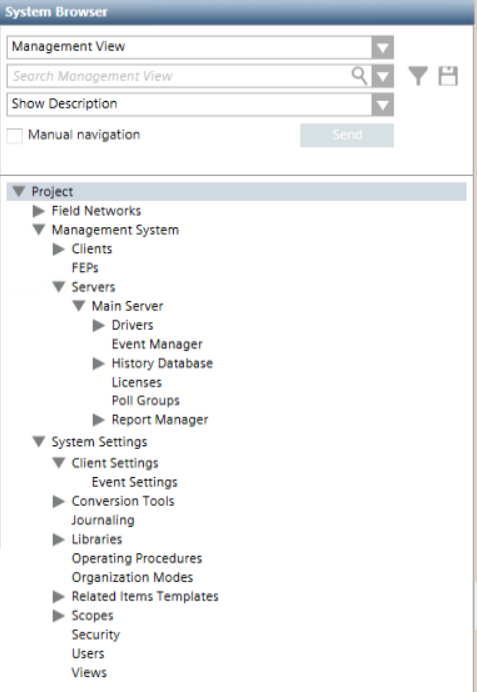

Management View

Levels

The Project root includes the following levels:

  • Field Networks, for handling the field networks configuration and field data import/creation
  • Management System, for handling the physical computers within the system:
    • Clients, comprising all the client computers and their respective devices. It also includes any relevant driver (if available).
    • Front-end Processors (FEP), comprising all the FEP computers and their respective devices. It also includes any relevant driver.
    • Servers, comprising Desigo CC server (Main Server), and its respective devices, along with the drivers, History Database, licenses, and managers.
  • System Settings, including the following features:
    • Client Settings
    • Conversion Tools
    • Journaling
    • Libraries
    • Operating Procedures
    • Organization Modes
    • Related Items Templates
    • Scopes
    • Security
    • Users
    • Views

The Management View comes with installation and does not require any changes. If desired, you can customize it to a limited extent, by changing the Description of nodes in the System Browser tree. If desired, you can also associate a graphic with the root node of the view.
