Draw and Configure a Password Command Control

The following is just one way to draw and configure the Password command control to command from within a graphic.

  • You have reviewed or completed the Preparing to Create Controls to Command Objects workflow.
  1. To create a new command control element on your graphic, from the File menu, select New Graphic .
  1. Click Command Control , and draw a rectangular shape on the canvas.
  • The undefined element displays on the canvas.
  1. From the Property View (Command Control Properties), expand the Command Control properties, and from the Control Type drop-down menu, select Password.
  • A series of dots display in the command control.
  1. In the Parameter Name field, type the data point’s Parameter name obtained from the Models & Functions Command Configuration table. This field is case–sensitive. This property will be the same Parameter property later defined in the Command and Navigation section for each control.
  • For this example, type: Password.

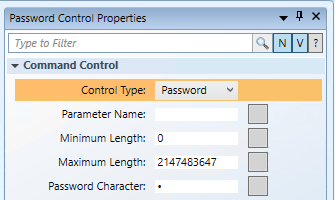

  1. To configure the Password Command Control properties, do the following:
  • Minimum Length: Enter the minimum number of allowable characters.
  • Maximum Length: Enter the maximum number of allowable characters.
  • Password Character: Enter the default character to represent the masking characters when the user enters the password. The default character is set to a dot ●.
