Unit Conversion Table

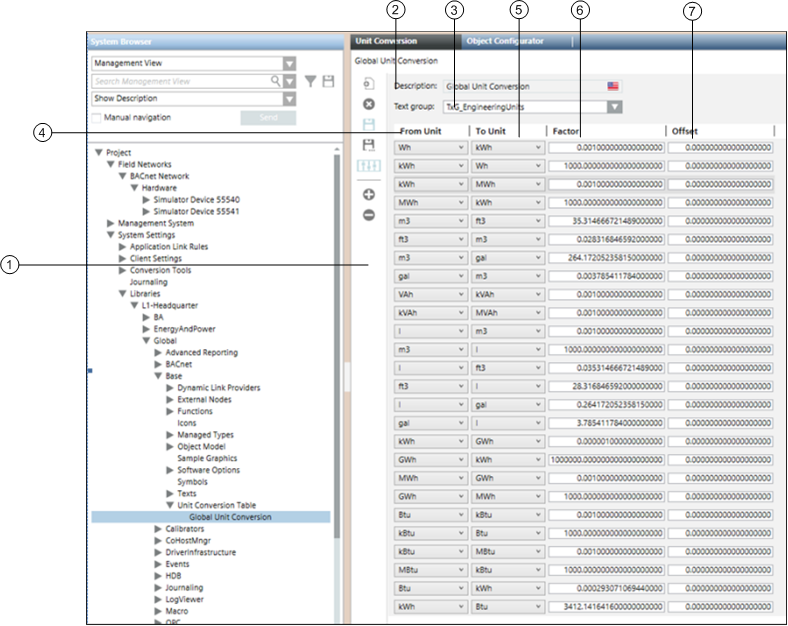

Unit Conversion Workspace

Selecting the Unit Conversion folder displays the unit conversion table that allows you to convert values stored in a certain unit of measurement to a different unit.



Name

Description

1

Unit Conversion Toolbar

Contains buttons for performing various activities for unit conversion.

2

Description

Description of the unit conversion table.

3

Text Group drop-down list

Displays all the text groups present in the project.

4

From Unit

Displays the units to be converted. This list is populated with the values from the selected text group

5

To Unit

Displays the units to which the unit selected in the From Unit is to be converted. The list is populated with values from the selected text group.

6

Factor

Allows you to enter the conversion factor. For example, if you want to convert Watts to Kilowatts, the value in this field will be 0.001.
NOTE: The value specified in this field must be of type Integer or Float.

7

Offset

Allows you to specify the offset for each conversion pair.



Icon

Name

Description

Add new table

Adds a new unit conversion table

Delete table

Deletes an existing table

Save

Saves the table with the unit conversion details

Save As

Saves the unit conversion table with a new name

Add new row

Adds new rows to the unit conversion table

Delete selected row

Deletes the selected row from the unit conversion table
