Concept of Deleting History Data

Data Limits of History Database

Desigo CC supports two types of keeping the data limits:

• Maximum timeframe
• Minimum timeframe

Maximum timeframe

At the time of deletion, all data older than the maximum retention date. In the following figure, less data would need to be deleted according to the setting for maximum retention date.

Minimum timeframe

At the time of deletion, no data newer than minimum retention date.

After deletion, the existing data consists of a mandatory (fixed) and an optional (variable) data range. The variable data range is dependent on the amount of data, as well as the point in time when it was saved. As a result, no exact statement can be made on the size of the History Database following deletion.

NOTICE

Deleting Mandatory Data

If minimal retention and maximal retention are not set properly, data from the mandatory range is also deleted. This is also true when maximal retention is lower than minimal retention.

Data Delete by Time Interval

Defining a time interval prevents overflow of the History Database. Note the following when defining a time interval:

• Legal guidelines
• Is SQL Server or SQL Server Express used?
• Defined database size
• Possible data volume within the time interval

Time Interval Concept

For simplicity reasons, the following workflow example only shows the influence of Maximal retention span on data deletion.

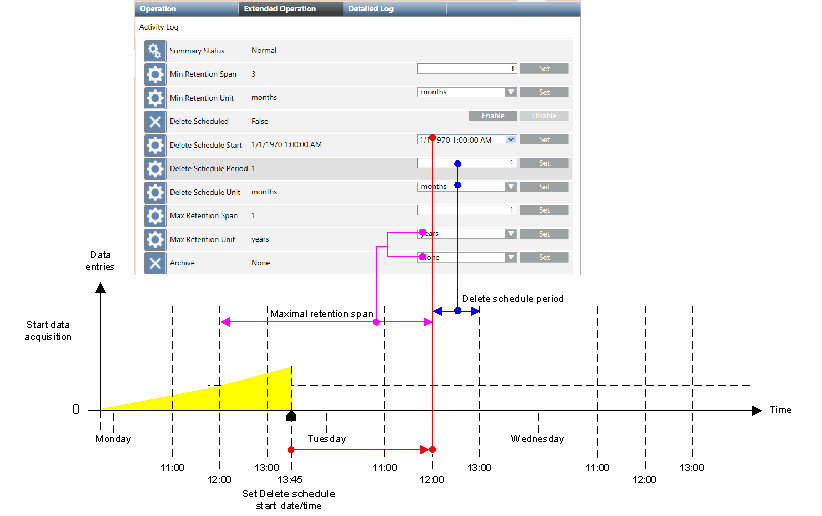

Step 1

In the Extended Operation tab, the time interval is defined on Monday at 1:45 pm (blue = 1 hour), time period (pink = 1 day) and start time (red = Tuesday 12:00). Historical data (yellow) is already saved in the History Database at this time.
NOTE: A time period of weeks, months, or longer must be selected depending on the period of the historical data to be saved to trace results. You must ensure that necessary data capacity is nevertheless available in the database.

Step 2

The delete process for the data starts if the set start time (Tuesday 12:00) is reached.

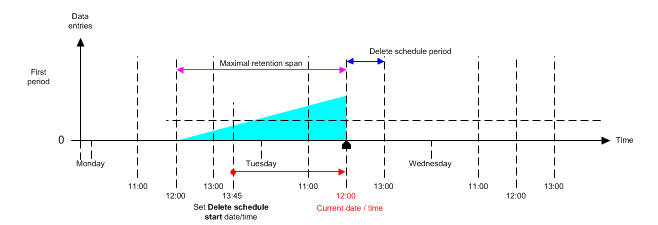

Step 3

Historical data [yellow] outside the time period (Monday/12:00 – Tuesday/12:00) is deleted. Historical data (blue) within the time period is not deleted.

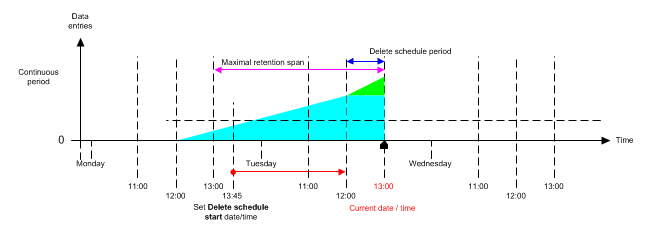

Step 4

New historical data is saved during the next time interval (green).

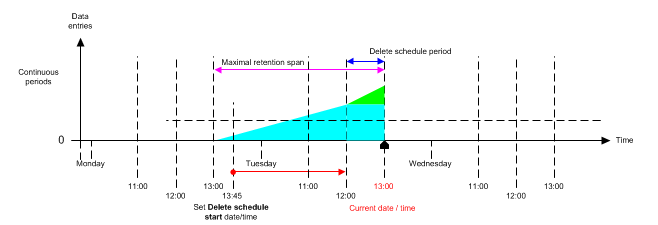

Step 5

All historical data outside the time period (13:00 – 13:00) is deleted once the end of the time interval (13:00) is reached.

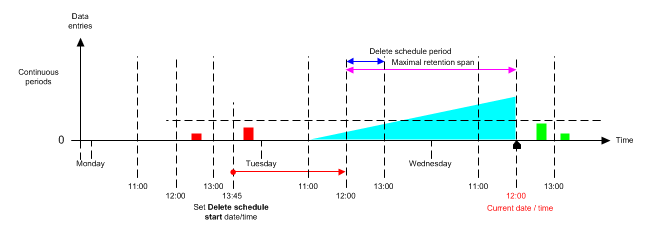

Exception

Older historical data (red) that is subsequently saved to the History Database is deleted from the History Database as part of the next deletion (for example, Wednesday 12:00). Historical data with a timestamp in the future (green) are sorted into the applicable time period at a later date.

NOTICE

Data Loss

Prior to deleting data from the database, make sure data is backed up again following storage of older history data. This is the only way to later attempt to partially reconstruct the data.

Values and Data Capacity Settings

The following tables provide general guidelines for the various data volumes that are possible in a short term storage while operating prior to executing an emergency delete. An average value of 0.4 KB per data entry is assumed to calculate the database storage used. The effective number of saved data entries may be higher than indicated in the tables.

The applied settings depend strongly on the maximum entries per day, data group, legal regulations, and SQL Server used (maximum of 10 GB for SQL Server Express or 250 GB for SQL Server).

NOTE:
SQL Server Express is not suitable if you use Minimal retention span and anticipate a large amount of data.

Settings with Maximum Timeframe Only

NOTE:
When applying settings, remember that an emergency delete occurs at 90% of database capacity.

Use the following table if the data volumes must be more precisely calculated.

Emergency Delete

The History Database collects history data over an extended time period. This may result in a full History Database that can no longer accept new data. A database becomes full when:

• Data is never deleted
• Large volumes of data are coming in
• Deletion is misconfigured
• Deletion is disabled

To ensure a database is not blocked and Desigo CC continues to be stable, data is deleted as part of a three-tiered concept:

1. Emergency delete 1
2. Emergency delete 2
3. Lock database

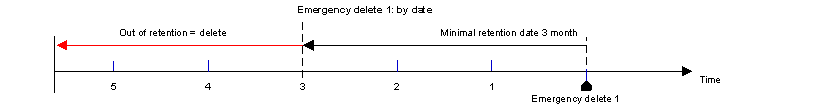

Emergency Delete 1

• Emergency delete 1 is triggered when 90% of the database capacity is reached.
• The amount of data for deletion is based on the settings for minimal retention date.

NOTE 1:
Emergency delete 1 is repeated if no subsequent deletion processes follow (by time interval or manually).

Emergency Delete 2

If Emergency delete 1 does not delete a sufficient number of data entries, an additional 10% is deleted per data group. Upon Emergency delete 2, the settings for minimal retention date no longer apply.

NOTE:
When Emergency delete 2 is enabled, legal regulations for data retention may no longer be satisfied.

Lock Database

If the database cannot delete the required number of data entries, the History Database is locked exclusively at 98% full. This lock ensures that the database is not filled up with additional data and Desigo CC continues to run.
History data not saved during this time is saved temporarily to the Desigo CC hard drive [Installation Drive]:\[Installation Folder]\[Project Name]\Data\*.HD2.
