Graphics Editor Workspace

The Graphics Editor window consists of several tabs, a quick access toolbar, a status bar, multiple views for both viewing information and completing specific tasks, and a work area that contains tabbed drawing board panes that house the canvas upon which graphics are drawn and edited. Additional tools and components available in the Graphics Editor include right-mouse click menus, vertical and horizontal scroll bars, navigational tools, and keyboard shortcuts.

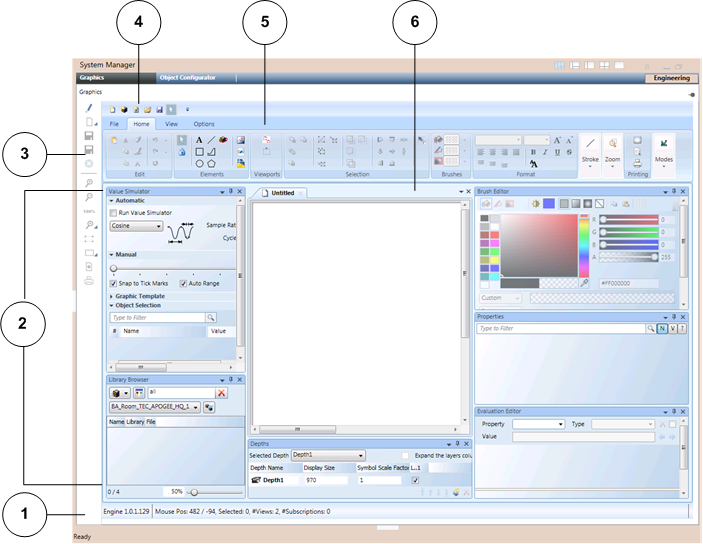

Graphics Editor User Interface



Description

1

Status Toolbar

2

Dock Panel with Views

3

Graphics Editor toolbar
NOTE: In Operating mode the Graphics Viewer toolbar displays.

4

Quick Access Toolbar

5

Tabs

6

Work area
