Executing an Alarm Printout Step in Assisted Treatment
Executing an Alarm Printout Step in Assisted Treatment
You are in the Assisted Treatment window, and the operating procedure includes an alarm printoutstep that you must manually execute. For background information about the Desigo CC reporting feature, see the reference section.

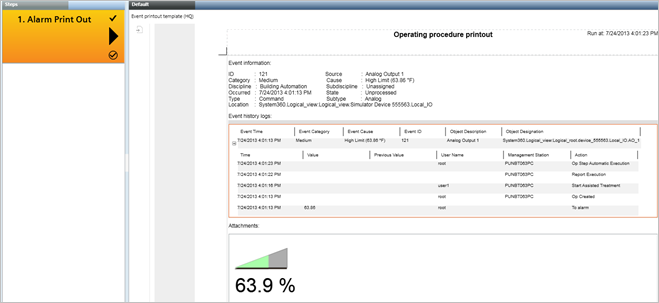

Alarm Printout Step
From the Steps checklist, select the [alarm printoutstep].
The preconfigured alarm report displays in the Default tab. When you select this step for the first time, a new report is generated. On subsequent selection, the same report is reloaded.
If the report contains form controls (for example, editable fields or drop-down lists), specify the necessary information and click Save User Input.
Click Send to Output.
The report is routed to a file, email, or printer, depending on its configured output destination.
When you generate an alarm printout, a report, or an event-handling form using a virtual printer (for example, a PDF printer), the output files are saved in the following location: [Installation Drive]:\[Installation Folder]\[Project Name]\data\Reporting\Reports.
When you complete an assisted procedure of an event, any attachment (such as, alarm printout, report, or event-handling form) is saved in the following location: [Installation Drive]:\[Installation Folder]\[Project Name]\shared\attachments. The Activity Log report includes a link to these attachments.
.
.
