Properties and Commands of an OPC Server

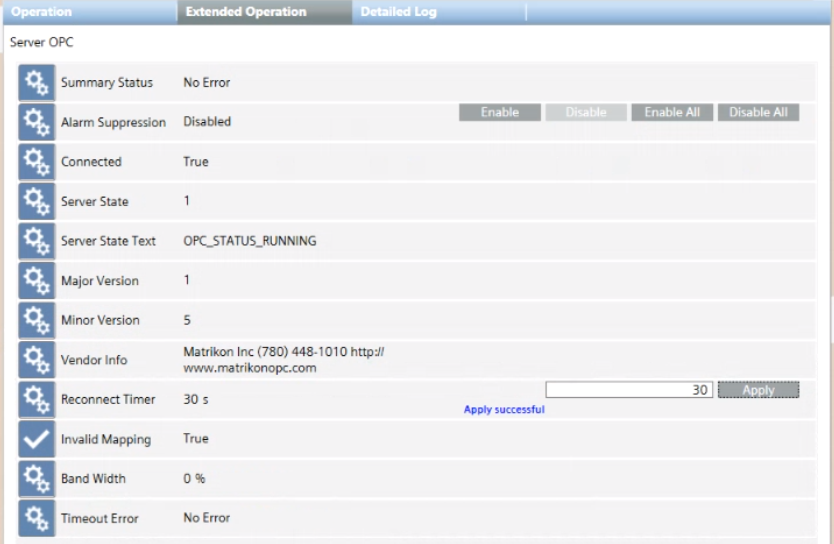

When you select a third-party OPC server, the Extended Operation tab displays its properties and commands.



Property

Description

Commands

Summary Status

Highest priority status that is currently active for an object.

-

Alarm Suppression

When this feature is enabled on specific system objects, any alarms coming from those objects are suppressed in the Desigo CC station.

  • Enable
  • Disable
  • Enable All
  • Disable All

Connected

Possible values:

  • True: There is connection to the corresponding OPC server.
  • False: The connection to the corresponding OPC server is interrupted.

-

Server State

The status supplied by the server as a number according to the OPC specifications.

-

Server State Text

Textual description provided for the Server State property.

-

Major Version

Major version of the server software.

-

Minor Version

Minor version of the server software.

-

Vendor Info

Manufacturer-specific information on the server.

-

Reconnect Timer

After an interruption of the OPC client-server connection, time in seconds after which the third-party OPC client attempts to restore the connection to the OPC server.

  • Apply

Invalid Mapping

True displays when the invalid bit is set by the driver in case the OPC quality information is BAD or UNCERTAIN.

-

Band Width

Sever load expressed in percentage. Over 100% indicates that too many items with too high update rate are being requested.

-

TimeoutError

Possible values:

  • No Error
  • Timeout error during read
  • Timeout error during write
  • Timeout error during refresh

-
