Executing a Graphic Step in Assisted Treatment

• You are in the Assisted Treatment window and the operating procedure includes a graphic step that you want to do.

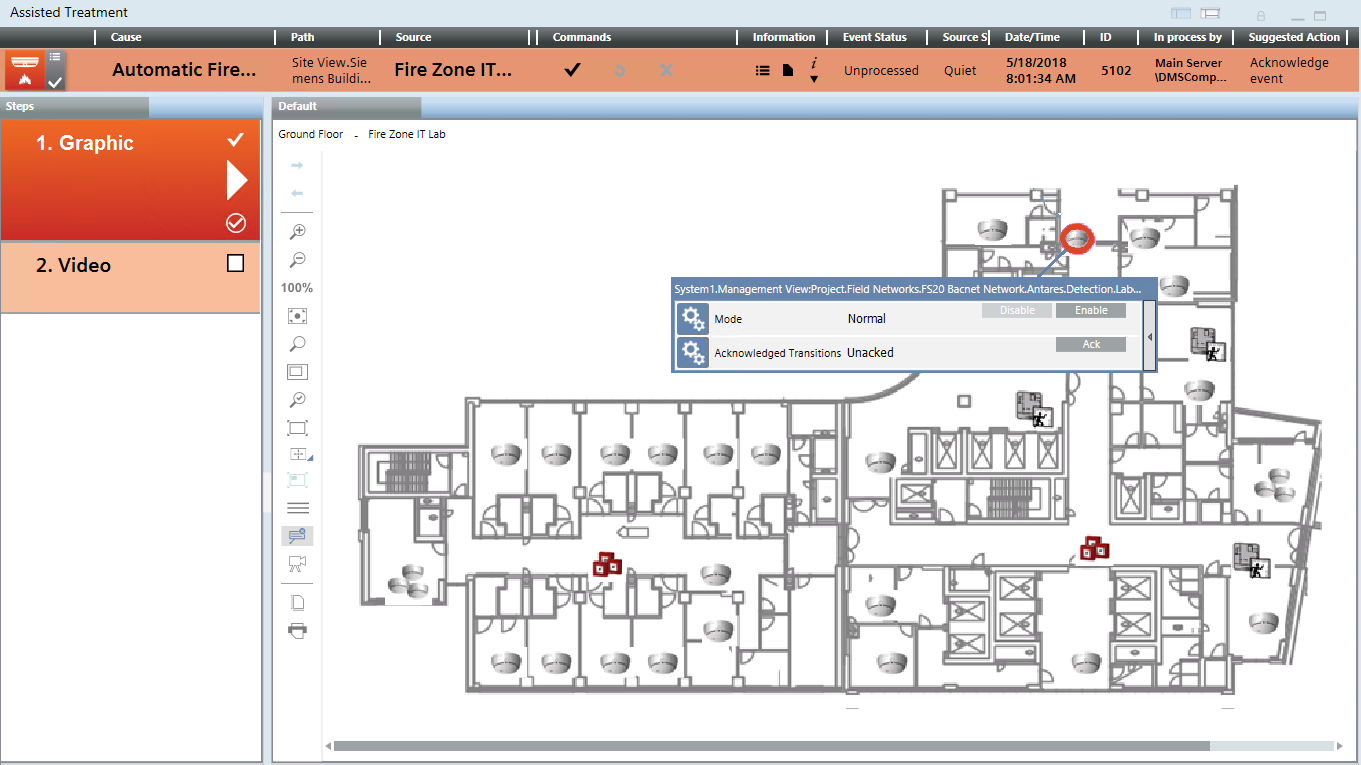

1. From the Steps list, select the [graphic] step.

• A graphic of the facility displays in the Default tab.

• The symbols of the alarmed objects show a colored circle and the Status and Command window.

2. Check the status of the danger management objects on the graphic.
   NOTE: If there are multiple graphics associated to the event source, you can show them using the arrow buttons in the toolbar of the Graphics application.

3. You can issue control commands from:

• The Commands column of the event bar above the graphics

• If available, the icon included in the symbol (see Danger Management Object Symbol)

• The Status and Command window

• The Operation and Extended Operation tab in the Contextual pane (see Advanced Layout)
