Notifier Onyx Configuration (CSV) File

To integrate a NOTIFIER® Onyx fire panel into Desigo CC you must first prepare a textual configuration file in CSV (comma separated values) format that defines the data structure for the panel.

To do this, use Microsoft Excel or a text editor to edit the configuration file.
NOTE: Use a comma (,) as separator.

You can then use this file to import the configuration.

Weitere Informationen zur Modbus-Konfigurationsdatei (CSV) finden Sie unter CSV-Datei für den Import von Modbus-Geräten.

To obtain pre-configured CSV sample files to edit, contact the Technical Support team.

Die Vorkonfiguration von CSV-Dateien mit bereits für jedes Objekt definierten Offsets reduziert die Möglichkeit, falsche Adressen von der Managementstation zu lesen. Ausserdem können Beispiele für bereits definierte Funktionszuordnungen nützlich sein, wenn Sie neue Punkte hinzufügen und mit einem Beispiel für einen vorhandenen Punkttyp beginnen, der in der CSV-Datei mit definierten Funktionen enthalten ist.

Pre-configured sample files can be used to create custom configuration files by adding or removing annunciators, remote displays, loops, detectors, modules, zones, or circuits according to the specific configuration.

Da die Gerätepunkte als flache Liste in die Managementsicht importiert werden, bieten die vorkonfigurierten Beispieldateien zudem eine vordefinierte technische Sicht, die für die vor Ort erforderliche Konfiguration verwendet werden kann.

As for the logical view, pre-configured sample files can be also modified to automatically create a user-defined view out of the import. This part is not provided in pre-configured CSV files because user views strictly depend on the customer’s requirements that can be easily added.

Onyx Configuration File Sections

Section	Description
[Connections]	Communication channels between Onyx panel and Desigo CC. 1 interface for each device must be defined.
[Devices]	Onyx fire panel.
[Points]	Physical points.

Onyx Connections Data

Der Abschnitt [Connections] ist wie folgt zusammengesetzt:

Data	Description
[ConnectionName]	Interface name. Special characters are not allowed.
[ConnectionDescription]	Interface description to display in System Browser.
[SlaveId]	Onyx Modbus subordinate address.
[IP_Address]	Interface IP address.
[Port]	TCP Modbus port. Default value: 502.
[Alias]	Not used.
[FunctionName]	Not used.
[Discipline ID]	Not used.
[Subdiscipline ID]	Not used.
[Type ID]	Not used.
[Subtype ID]	Not used.

Connections Section (When Not Used Fields Are Collapsed)

Onyx Devices Data

The [Devices] section comprises the following data:

Data	Description
[ParentConnectionName]	Name of the interface assigned to this device.
[DeviceName]	Device name.
[DeviceDescription]	Device description to display in System Browser.
[ObjectModel]	Not used.
[Alias]	Not used.
[Function Name]	Not used.
[Discipline ID]	Not used.
[Subdiscipline ID]	Not used.
[Type ID]	Not used.
[Subtype ID]	Not used.
[LogicalHierarchy]	Not used.
[UserHierarchy]	Not used.

Devices Section (When Not Used Fields Are Collapsed)

Onyx Points Data

Der Abschnitt [Points] ist wie folgt zusammengesetzt:

In this CSV section the integration makes use of both custom and Nto1 import modes:

Custom import mode requires the use of custom import rules. Object models are mandatory, while there is no need to define DPEs.
Nto1 import mode requires that each DPE of an object model must be defined.

Data	Description
[ParentDeviceName]	Name of the device to which the point is connected.
[Name]	Point name. Special characters are not allowed.
[Description]	Point description to display in System Browser. For Nto1 objects, the Description field is needed for the first property only. The subsequent properties will be ignored.
[FunctionCode]	For Nto1 objects only (see CSV File for Modbus Device Import).
[Offset]	For Custom objects, used in combination with the import rules table to achieve the correct value of the register. For Nto1 objects (defined for each property in CSV sample files that can be provided by the Technical Support team). The following rules apply to Onyx CSV sample files.
	Onyx Gateway
	Offset 0 (zero) is required in the first line.
	Panel Object (Nto1)
	See CSV File for Modbus Device Import.
	Onyx Printer
	Offset 0 (zero) is required.
	Loops Objects (Nto1)
	See CSV File for Modbus Device Import.
	Detectors and Modules
	Start Address	End Address		Device/Module Address
	0	199		L1D1– L1D159
	200	399		L1M1– L1M159
	400	599		L2D1– L2D159
	600	799		L2M1– L2M159
	800	999		L3D1– L3D159
	1000	1199		L3M1– L3M159
	1200	1399		L4D1– L4D159
	1400	1599		L4M1– L4M159
	1600	1799		L5D1– L5D159
	1800	1999		L5M1– L5M159
	2000	2199		L6D1– L6D159
	2200	2399		L6M1– L6M159
	2400	2599		L7D1– L7D159
	2600	2799		L7M1– L7M159
	2800	2999		L8D1– L8D159
	3000	3199		L8M1– L8M159
	3200	3399		L9D1– L9D159
	3400	3599		L9M1– L9M159
	3600	3799		L10D1– L10D159
	3800	3999		L10M1– L10M159
	Analog Values (available for 4-20ma Modules only)
	Start Address	End Address		Analog Value (16 bits)
	0	199		L1M1– L1M159
	200	399		L2M1– L2M159
	400	599		L3M1– L3M159
	600	799		L4M1– L4M159
	800	899		L5M1– L5M159
	1000	1199		L6M1– L6M159
	1200	1399		L7M1– L7M159
	1400	1599		L8M1– L8M159
	1600	1799		L9M1– L9M159
	1800	1999		L10M1– L10M159
	Zones
	Start Address	End Address		Zone Address
	6000	6999		General Zones
	7000	8999		Logical Zones
	9000	9099		Trouble Zones
	9100	9109		Releasing Zones
	Panel Circuits
	Use consecutive offsets from 1 to 96 (for example, offset 96 for panel circuit 96)
	Bell Circuits
	Use consecutive offsets from 1 to 4 (for example, offset 4 for bell circuit 4)
	Remote Displays Offsets
	Offset		Remote Displays
	5024		1 to 8
	5025		9 to 16
	5026		17 to 24
	5027		25 to 32
	AnnunciatorsOffsets
	Offset		Annunciators
	5000		1
	5001		2 to 9
	5002		10 to 17
5003		18 to 25
5004		26 to 32
5007		33 to 40
5008		41 to 48
5009		49 to 56
5010		57 to 64
5016		65 to 72
5017		73 to 80
5018		81 to 88
5019		89 to 96
5020		97 to 104
5021		105 to 112
5022		113 to 120
5023		212 to 128
Voice&Phone (Nto1)
See CSV File for Modbus Device Import.
[SubIndex]	See CSV File for Modbus Device Import.
[DataType]	For Nto1 objects only (see CSV File for Modbus Device Import).
[Direction]	For Nto1 objects only (see CSV File for Modbus Device Import).
[Object Model]	Name of the object model linked to this point. Gateway: GMS_MODBUS_NF_Onyx_Gateway_150 Panel: GMS_MODBUS_NF_Onyx_Panel_150 Printer: GMS_MODBUS_NF_Onyx_Printer_150 Annunciator: GMS_MODBUS_NF_Onyx_Annunciator_150 Remote Display: GMS_MODBUS_NF_Onyx_RemoteDisplay_150 Loop: GMS_MODBUS_NF_Onyx_Loop_150 Panel Circuit: GMS_MODBUS_NF_Onyx_PanelCircuit_150 Bell Circuit: GMS_MODBUS_NF_Onyx_BellCircuit_150 Detector: GMS_MODBUS_NF_Onyx_Detector_150 Module: GMS_MODBUS_NF_Onyx_Module_150 4-20ma Module: GMS_MODBUS_NF_Onyx_4_20ma_Module_150 Zone: GMS_MODBUS_NF_Onyx_Zone_150 Voice & Phone: GMS_MODBUS_NF_Onyx_Voice&Phone_150
[Property]	For Nto1 objects only (See CSV File for Modbus Device Import).
[Alias]	Not used.
[Function]	Function name as defined in the Onyx library. Used to automatically associate the function (for example. NF_Onyx_AutomaticZone_150) to the point Instance during the import of the CSV file. This field is optional. Leave it blank if no function should be assigned during the import.
[Discipline ID]	Not used.
[Subdiscipline ID]	Not used.
[Type ID]	Not used.
[Subtype ID]	Not used.
[Min]	Not used.
[Max]	Not used.
[MinRaw]	Not used.
[MaxRaw]	Not used.
[MinEng]	Not used.
[MaxEng]	Not used.
[Resolution]	Not used.
[Eng Unit]	Not used.
[StateText]	Not used.
[AlarmClass]	Not used.
[AlarmType]	Not used.
[AlarmValue]	Not used.
[EventText]	Not used.
[NormalText]	Not used.
[UpperHysteresis]	Not used.
[LowerHysteresis]	Not used.
[LogicalHierarchy]	Used to create a hierarchy in the Logical View. For Nto1 objects, the [LogicalHierarchy] field is needed for the first property only. The subsequent properties will be ignored.
[UserHierarchy]	Used to create a hierarchy in the User-Defined View. For Nto1 objects, the [UserHierarchy] field is needed for the first property only. The subsequent properties will be ignored.

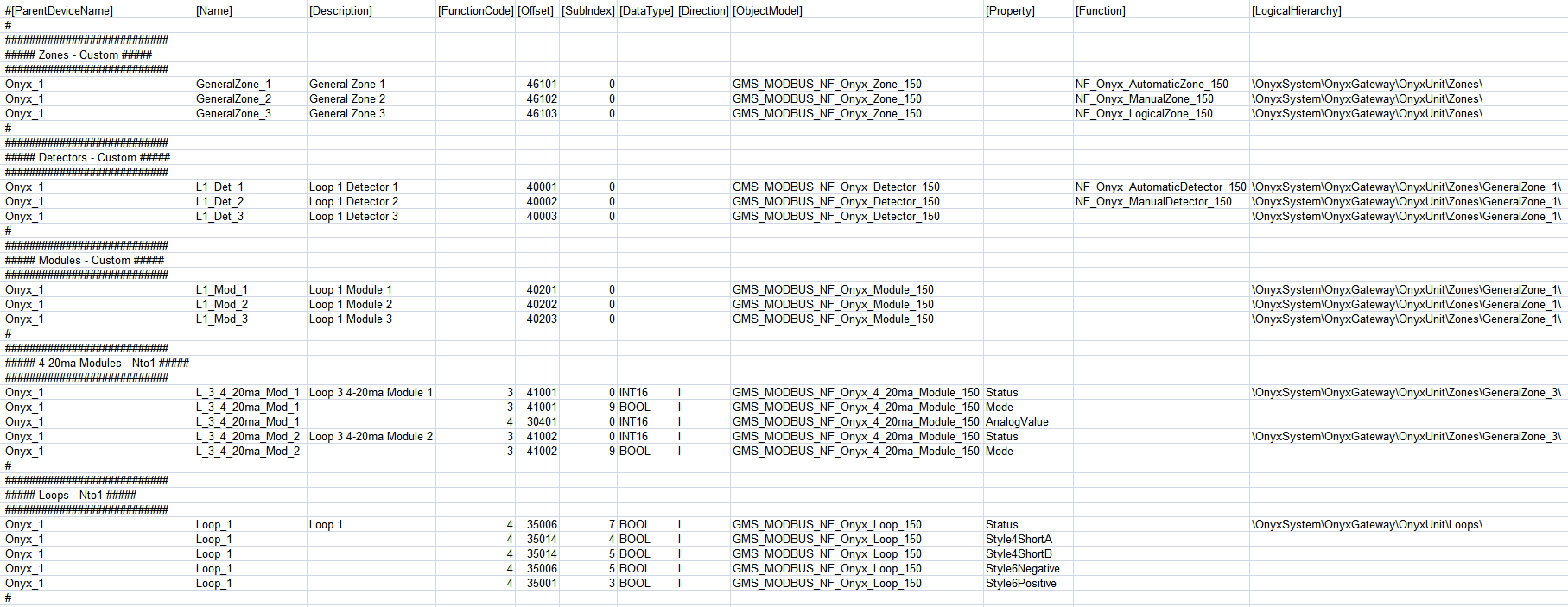

Points Section (When Not Used Fields Are Collapsed)
